Meter type fast twist fitting
PV Type Nickel Plated Brass Pneumatic Fittings

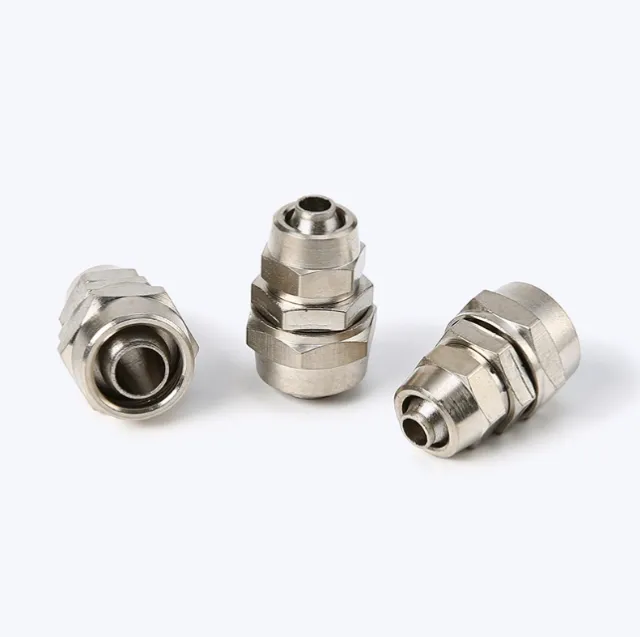

Nickel Plated Copper Quick Screw Connector Pneumatic Air Fitting Straight Joint Locking Nut PC4 PC6 PC8 PC10 PC12C10 PC12
Specifications
- Working medium
- Compressed air
- Material
- Copper
- Surface treatment
- Nickel plated
- Operating pressure
- 0-1.0Mpa
- Working Temperature
- 0-60 degree
PV All-Brass 90-Degree Union Elbow Compression Fitting
The PV Series is an all-brass 90-degree union elbow compression fitting designed to connect two pneumatic tubes of the same size. Its compact elbow configuration changes the direction of an air line by 90 degrees, making it ideal for pneumatic installations where space is limited or tubing must be routed neatly around machinery and other components.
The series is available for metric tubing from 4 mm to 16 mm outside diameter.
Key Product Features
All-Brass Construction
The fitting body and external connection components are manufactured from brass, providing excellent mechanical strength, dimensional stability and durability for industrial pneumatic applications.
Corrosion-Resistant Metallic Finish
The silver-colored metallic surface gives the fitting a professional appearance while helping protect the underlying brass from oxidation and normal environmental exposure.
Secure Compression Connection
Both tube ports use screw-tightened compression nuts. This construction provides a firm mechanical grip and helps prevent accidental tube release under vibration or continuous machine operation.
90-Degree Air-Line Routing
The compact elbow configuration allows pneumatic tubing to change direction without excessive bending. It is particularly useful in control cabinets, machine frames and confined installation areas.
Equal Tube Connection
Both sides of the PV fitting accept the same tube size, making it suitable for extending or redirecting a pneumatic line without changing its nominal diameter.
Wide Metric Size Range
Standard models are available for the following tube dimensions:
- 4 × 2.5 mm
- 6 × 4 mm
- 8 × 5 mm
- 10 × 6.5 mm
- 12 × 8 mm
- 14 × 10 mm
- 16 × 12 mm
Convenient Wrench Installation
The compression nuts feature wrench flats for controlled tightening. Selected versions may also be supplied with knurled nut surfaces for easier initial hand tightening.
Product Specifications
Item | Specification |
Product series | PV |
Fitting type | Equal union elbow compression fitting |
Configuration | 90-degree tube-to-tube connection |
Body material | Brass |
Exterior | Silver-colored corrosion-resistant metallic finish |
Connection method | Screw-tightened compression connection |
Number of tube ports | Two |
Tube connection sizes | 4–16 mm outside diameter |
Tube type | Metric pneumatic tubing with matching OD and ID |
Thread connection | None |
Recommended medium | Compressed air |
Working pressure | Confirm according to the selected tube and application |
Operating temperature | Confirm with the supplier before ordering |
Sealing components | Confirm according to the selected product version |
